Home > Renewable Energy Products > Inverter > APOLLO M-410



Hybrid Inverter, Hybrid Power Inverter - Apollo M-410, Single Phase Bidirectional Dual Mode Hybrid Inverter

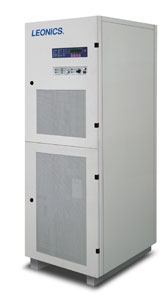

APOLLO M-410

Bidirectional Dual Mode Hybrid Inverter
for Mini-grid System

Brochure   Inquiry
APOLLO M-410 series is single-phase bidirectional dual mode hybrid inverter for mini-grid system. It can operate with the diesel generator, the battery bank and the external DC charge controller. It is suitalble for supplement diesel generator in off-grid areas. This hybrid inverter controlled the operation by microprocessor that makes it has high performance and capability to control and check overall system accurately and also supplies quality sine wave power output. It indicates the status of inverter with LED indicators and LCD display. The Battery Management and Controller (BMC) system is used to support the operating of inverter, which manages the battery charging and discharging for prevent battery capacity loss and prolong battery life.
High efficiency more than 94%
Single phase configuration
Low harmonic distortion (less than 4%)
Automatic/ Manual generator control
Dual control, bi-directional inverter operate in two modes; VCVSI - Voltage Control Voltage Source Inverter and CCVSI - Current Control Voltage Source Inverter
Capable to use multiple renewable energy source in both DC coupling and AC coupling such as solar panel, wind turbine
generator and micro hydro generator
Separate DC Bus for multiple sources charging
Monitor energy available from the renewable energy (DC) sources and minimize the charging current from the diesel generator
Automatic battery equalization (14 days or 30 days) to prevent battery capacity loss and to prolong battery life
External DC charge control by dry contact
