Home > Renewable Energy Products > Inverter > APOLLO GWT-300



Solar Inverter, Solar Grid Tie Inverter - Apollo GWT-300, Grid connected inverter for wind turbine
Solar Inverter, Solar Grid Tie Inverter - Apollo GWT-300, Grid connected inverter for wind turbine

APOLLO GWT-300

Grid connected Inverter for
Wind Turbine

(Recommend to use with
wind turbine controller -
APOLLO WTC-300 series)

Brochure   Inquiry

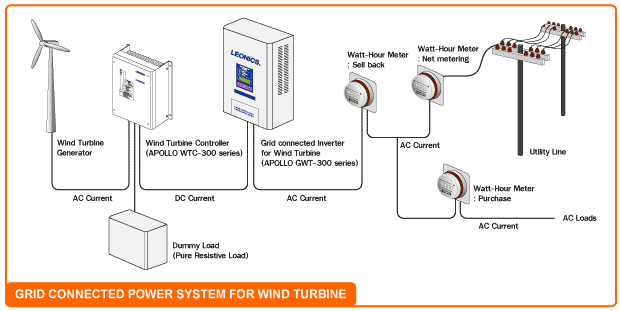

APOLLO GWT-300 series is grid connected inverter or grid tie inverter that is specially designed to deliver maximum power generated by permanent magnet generator energized by wind turbine to utility gird. The inverter converts DC output from the wind turbine controller (APOLLO WTC-300 series) to AC electricity and supplies to the utility grid. The inverter integrates with the MPPT (Maximum Power Point Tracking) to extract the maximum DC power generated by wind turbine and tested according to standards IEC 61727, IEC 62116, AS 4777 and AS 3100 for the islanding protection. It suits for wind power generator system.
  • High efficiency > 91%
  • Low Harmonic Distortion (less than 4%)
  • Built-in Maximum Power Point Tracking (MPPT)
  • Main and DC Bus are galvanically isolated
  • Fully automatic self start when wind turbine operates and stops
  • Tested to comply with IEC 61727, IEC 62116, AS 4777 and AS 3100
